PX-System™

Studio

The depth behind Air

Add acoustic depth while keeping your chosen textile face and the same wall mount.

Studio 200 with a fabric-wrapped Air face and separate deeper grey body

Depth &
performance

Start with Air for slim treatment in spaces used for speech and conversation. Studio adds 100 or 200 mm of core where treatment needs to extend towards lower frequencies.

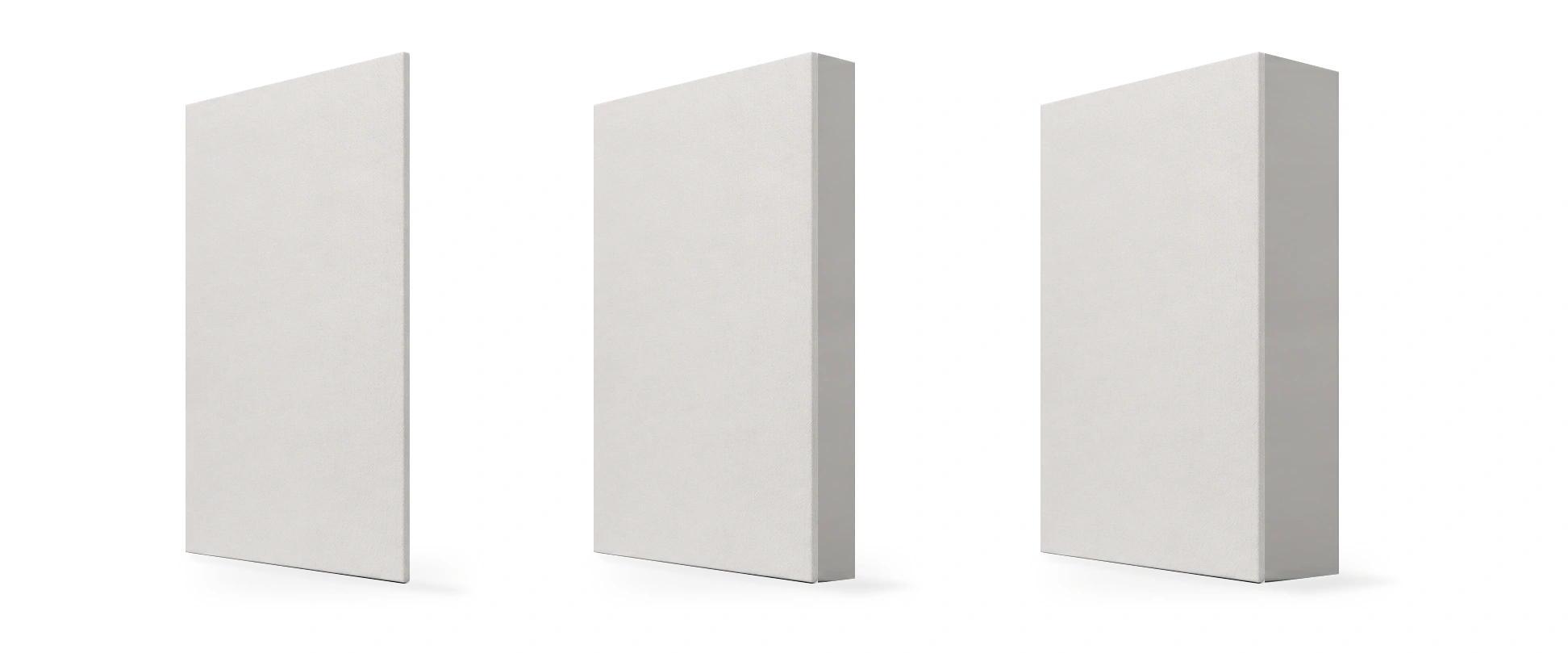

Air, Studio 100 and Studio 200 shown separately with increasing depth
Air, Studio 100 and Studio 200
ConfigurationCombined core depthIntended use
Air
20 mmSlim treatment for speech and conversation
Studio 100
120 mmTreatment across a wider frequency range
Studio 200
220 mmDeeper treatment with a focus on lower frequencies

We specify the configuration, finish and coverage around your room.

Acoustic performance depends on the selected finish and installation. Finished-assembly absorption classes are not yet available.

Core depths include Air’s 20 mm layer and are not installed dimensions. Mount adds an 18 mm cavity behind Air. Different depths can share a layout when the project calls for it.

One mount
Every configuration

The same mount supports Air, Studio 100 and Studio 200. Keep the wall fixing when you change depth.

Mount
Fixed to the wall once for all three configurations.
Studio
Adds a 100 or 200 mm core behind Air.
Air
The removable textile face of every configuration.

Changing depth means swapping the Studio module. Studio 100 and Studio 200 do not stack. Studio can also fix directly to the building surface; Mount is preferred.

View assembly

Studio fits between the same mount and the Air face.

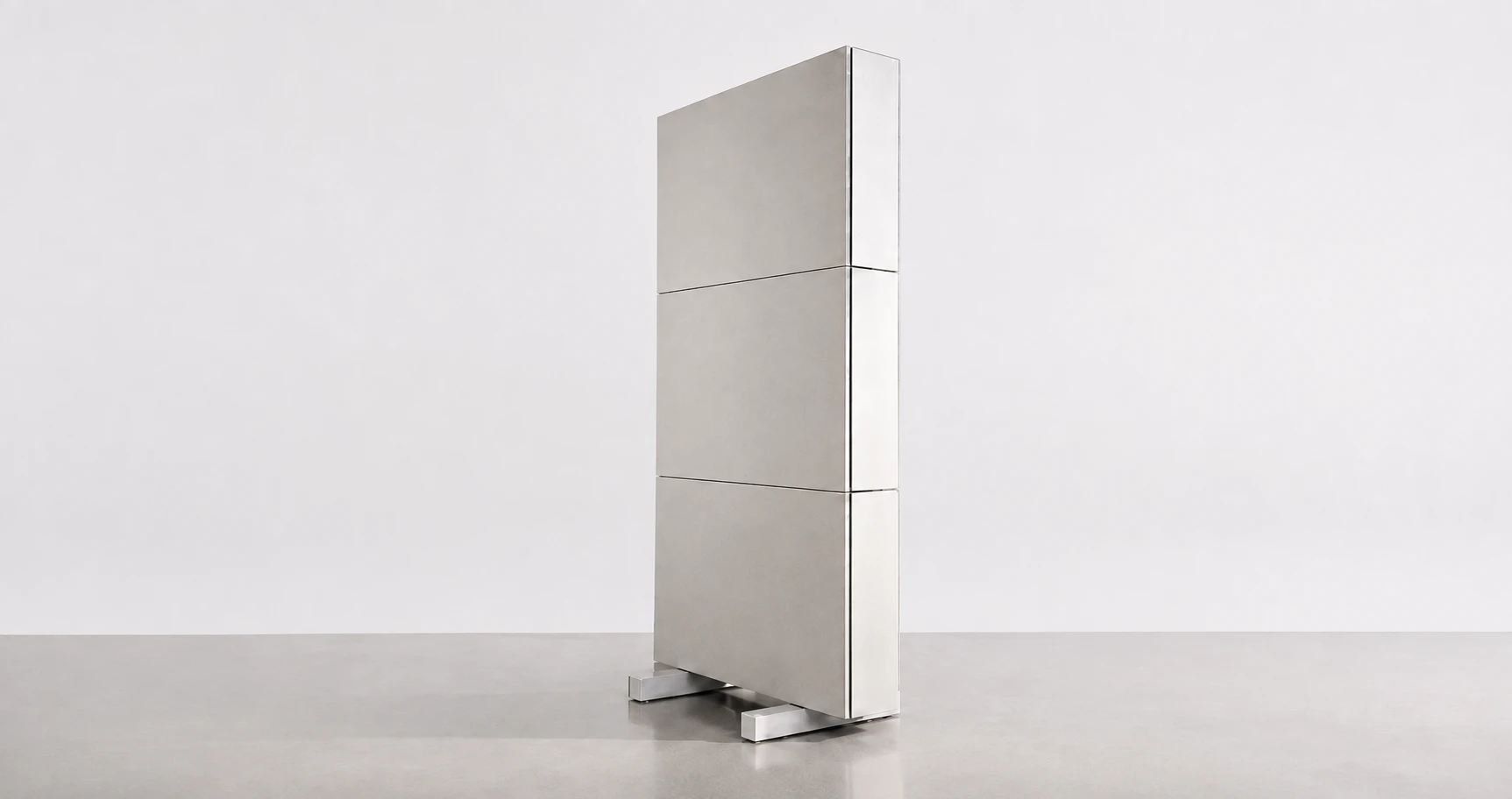

Freestanding Studio acoustic partition with three panels and two supporting feet
Studio / freestanding configuration

Wall, ceiling
or freestanding

Mount Studio on the wall or ceiling, or bring it into the room as a freestanding divider. Ceiling treatment keeps walls available for windows, artwork and shelving.

Ceiling fixings, freestanding supports and the configuration are specified for the installation.

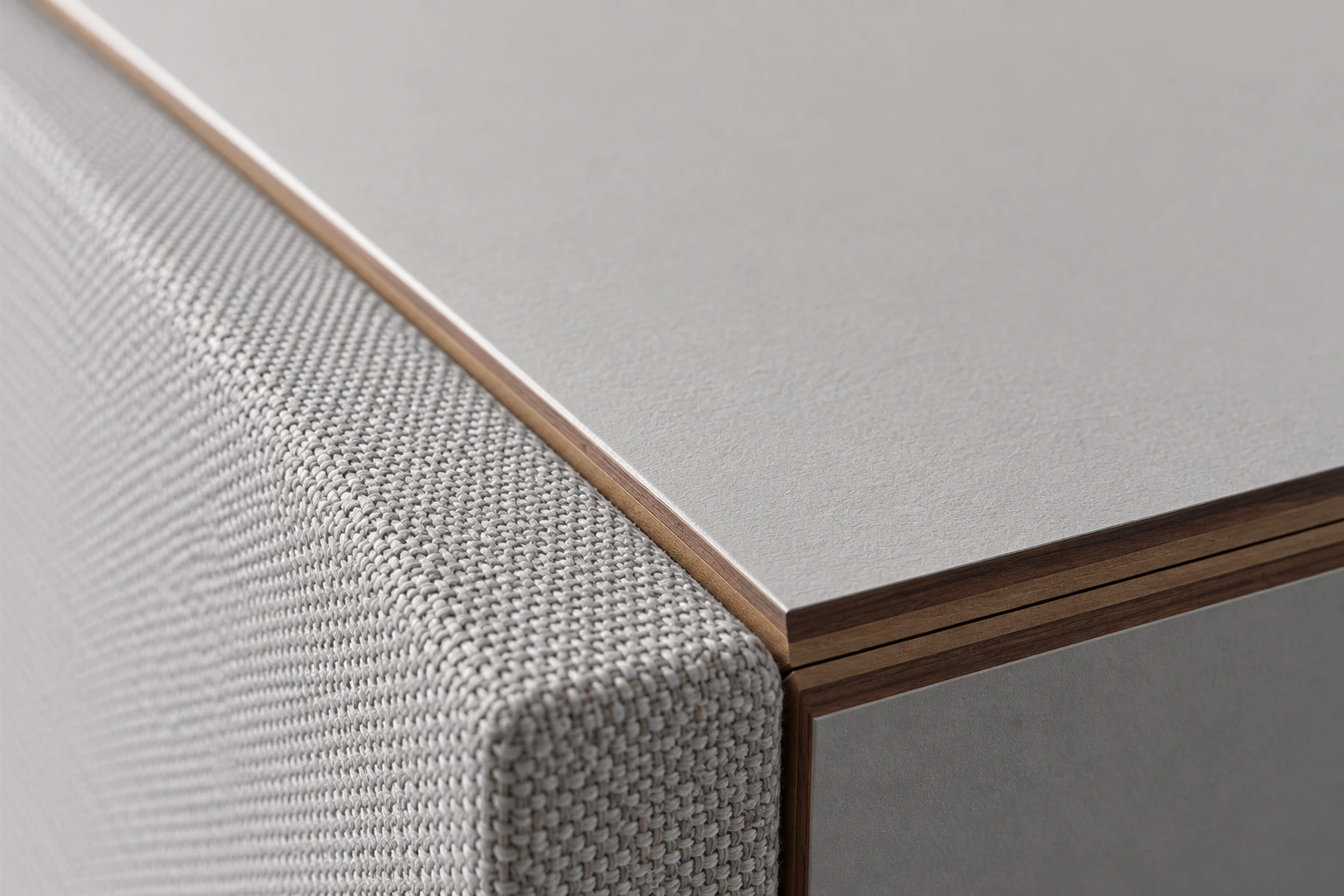

Close-up of the woven Air face meeting the separate Studio side and top panels
The face meets the volume.

Material,
all around

Air provides the removable textile face. Choose textile, veneer or leather for Studio’s sides and keep the framework when the finish changes.

Material suitability and fire requirements are agreed during specification. Acoustic response depends on the selected finish and installation.

Explore Air’s textiles

Start with your room

Bring your plans and material palette. We’ll develop the finish, configuration and acoustic specification around your project.

Discuss my project

Not ready to talk? Get a free Acoustic Score first.
