PX-System™

Air

A surface worth keeping

A slim acoustic panel for speech and conversation, with a textile cover you can change.

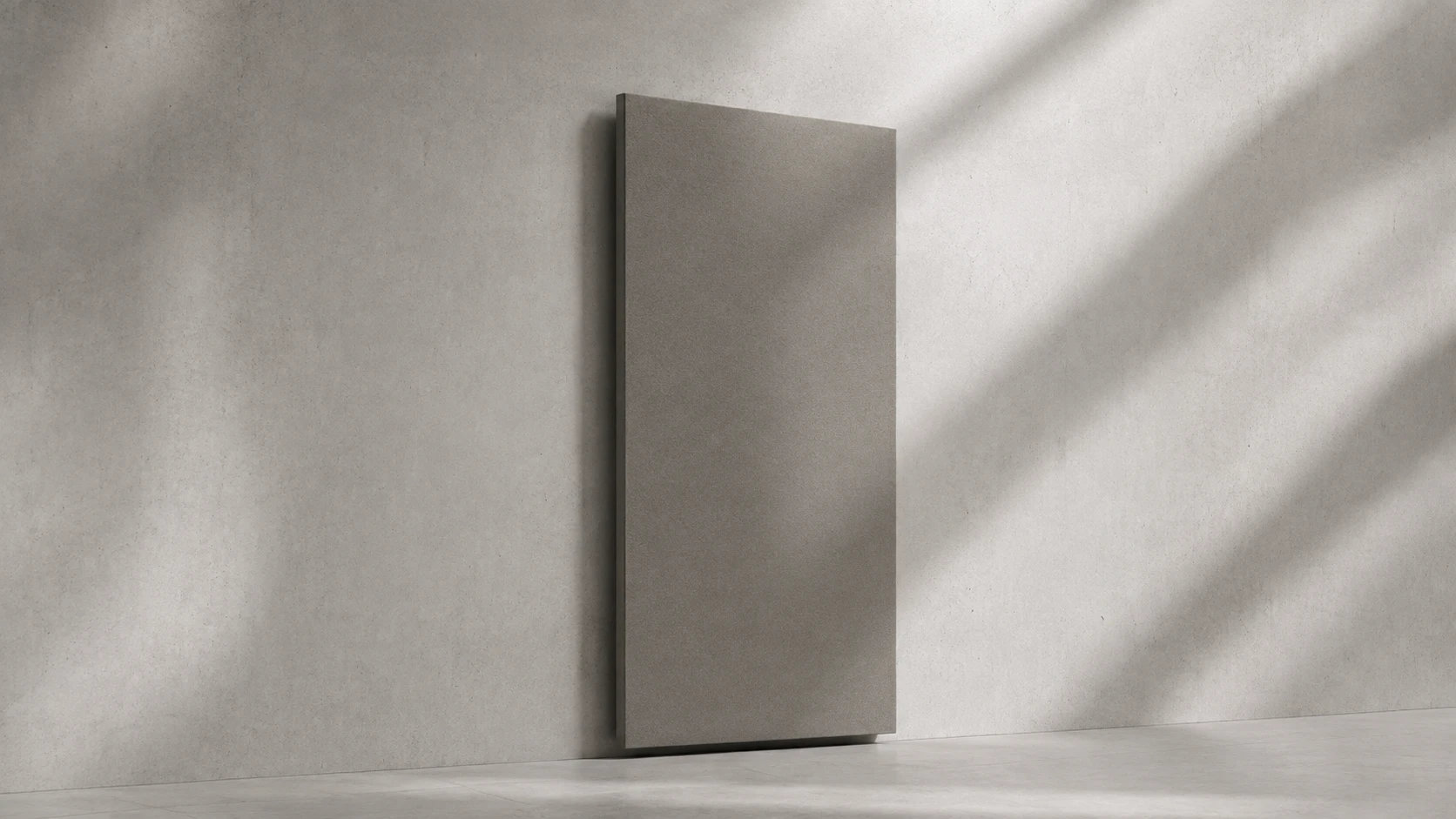

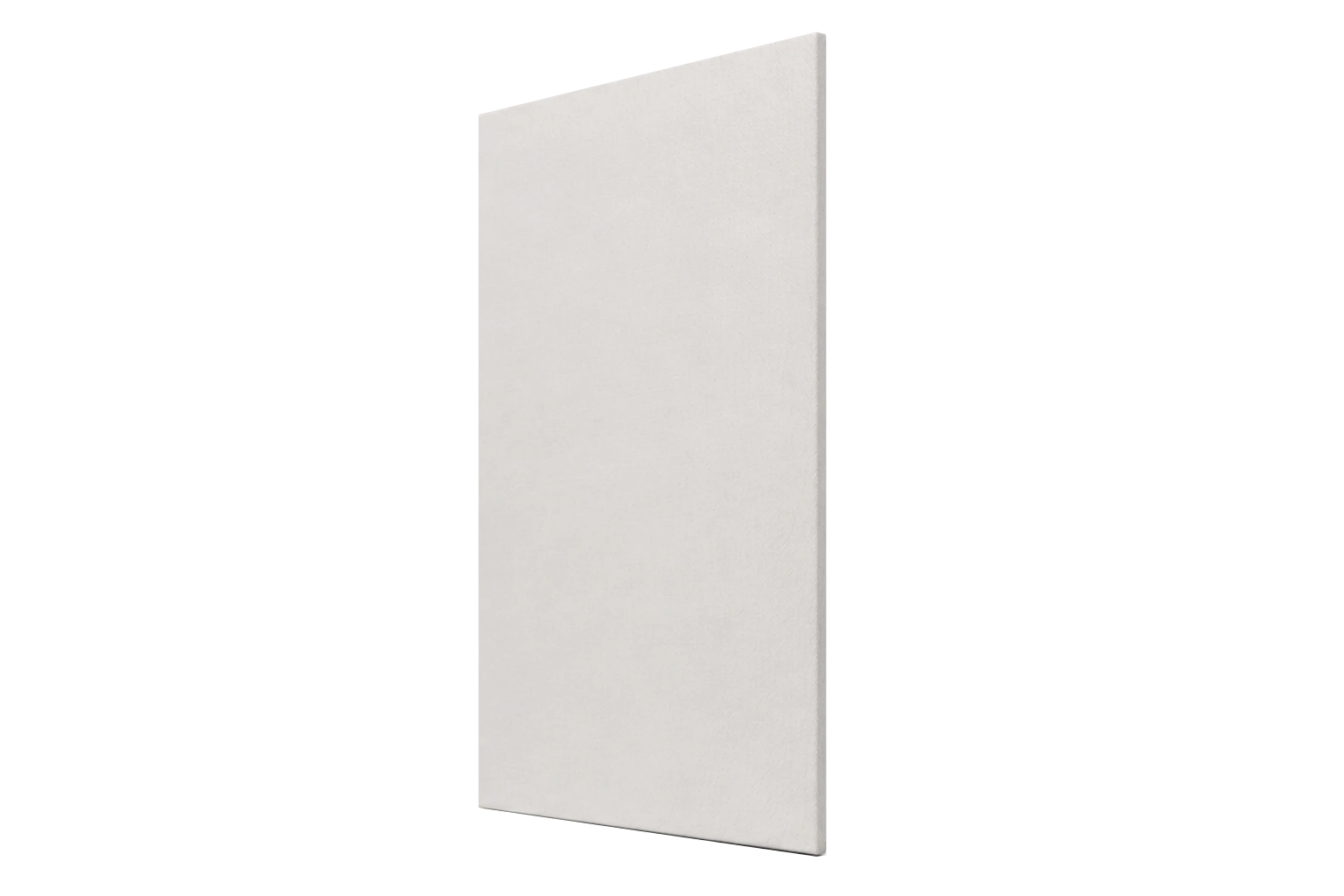

Slim Air acoustic panel with off-white woven fabric wrapping the front and edges

Your room
Your textile

Woven and non-woven textiles can become the face of Air. Choose Maharam, Knoll Textiles or your preferred supplier. We confirm suitability for your project.

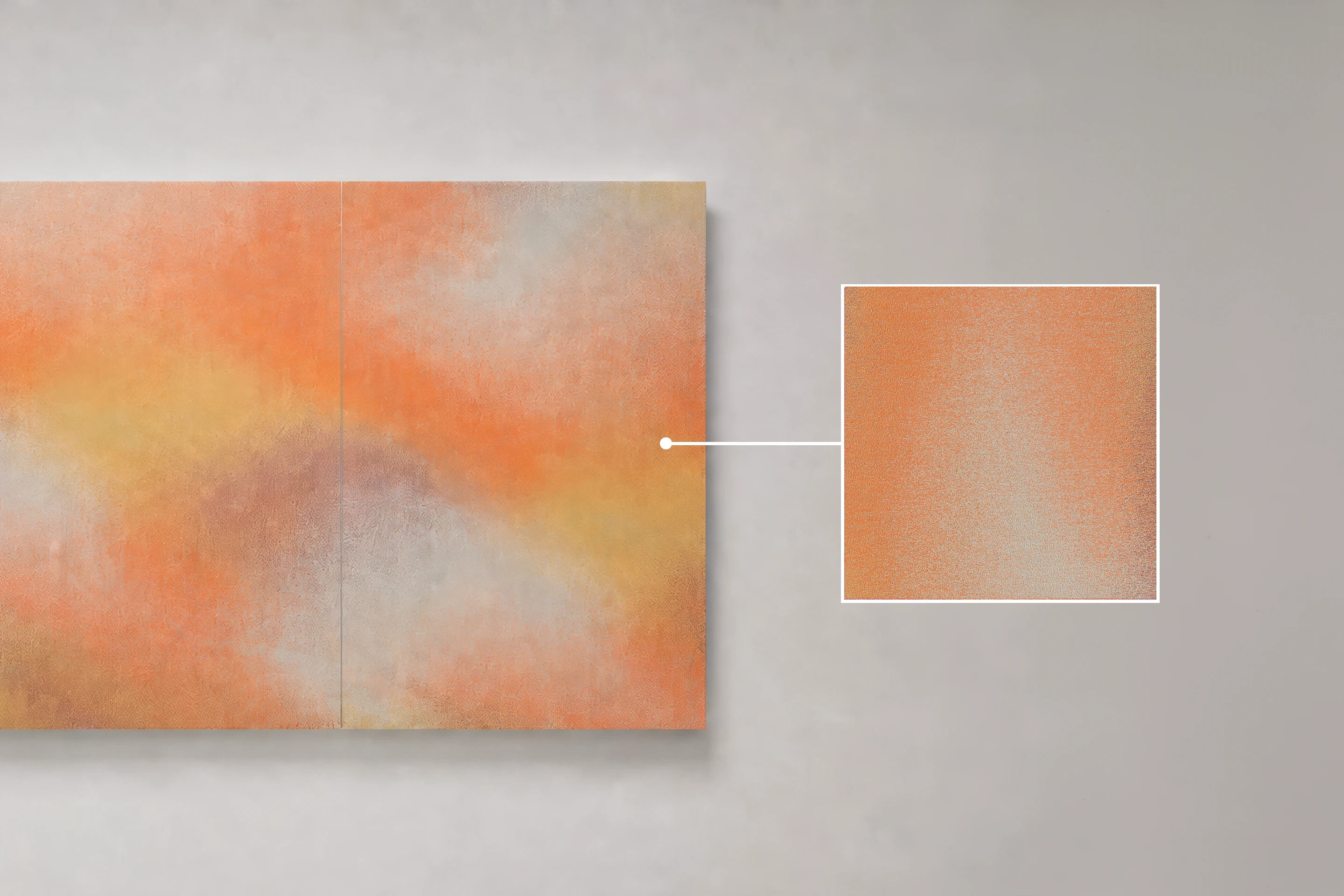

Air in Nova by Sander Lak, an orange and pale patterned textile, with a weave detail
MaharamNova by Sander Lak001 Quantum / 100% polyesterExplore Maharam upholstery
Air in Ultrasuede, a grey textile, with a material detail
Knoll TextilesUltrasuede026 Cement / 80% polyester, 20% polyurethaneExplore Knoll Textiles upholstery

Change the fabric
Keep the panel

Air pulls off its magnetic mount. A sewn perimeter cord holds the textile in the frame. Replace the cover, or clean and refit recommended textiles following their care instructions. The frame and core stay.

Air and Mount

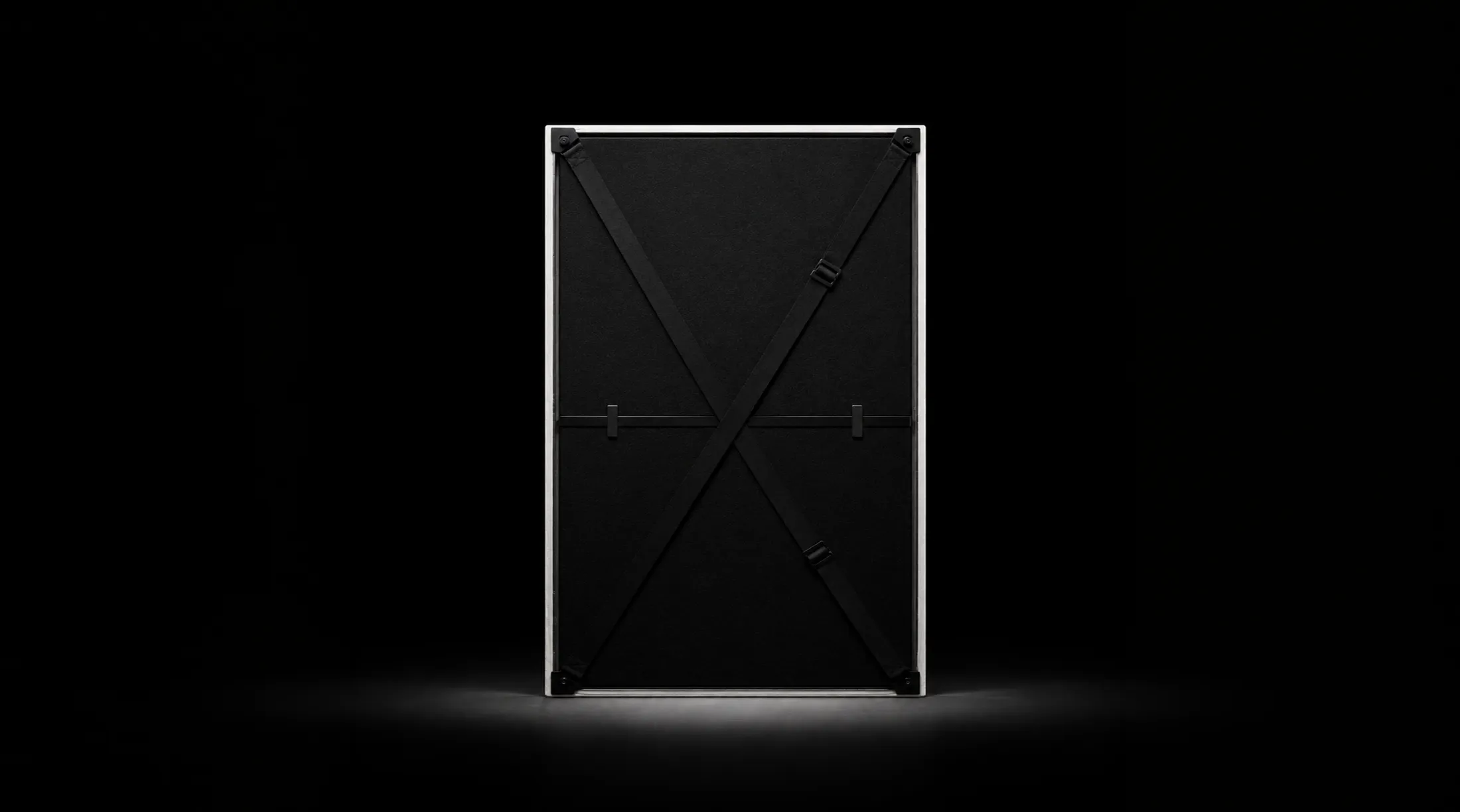

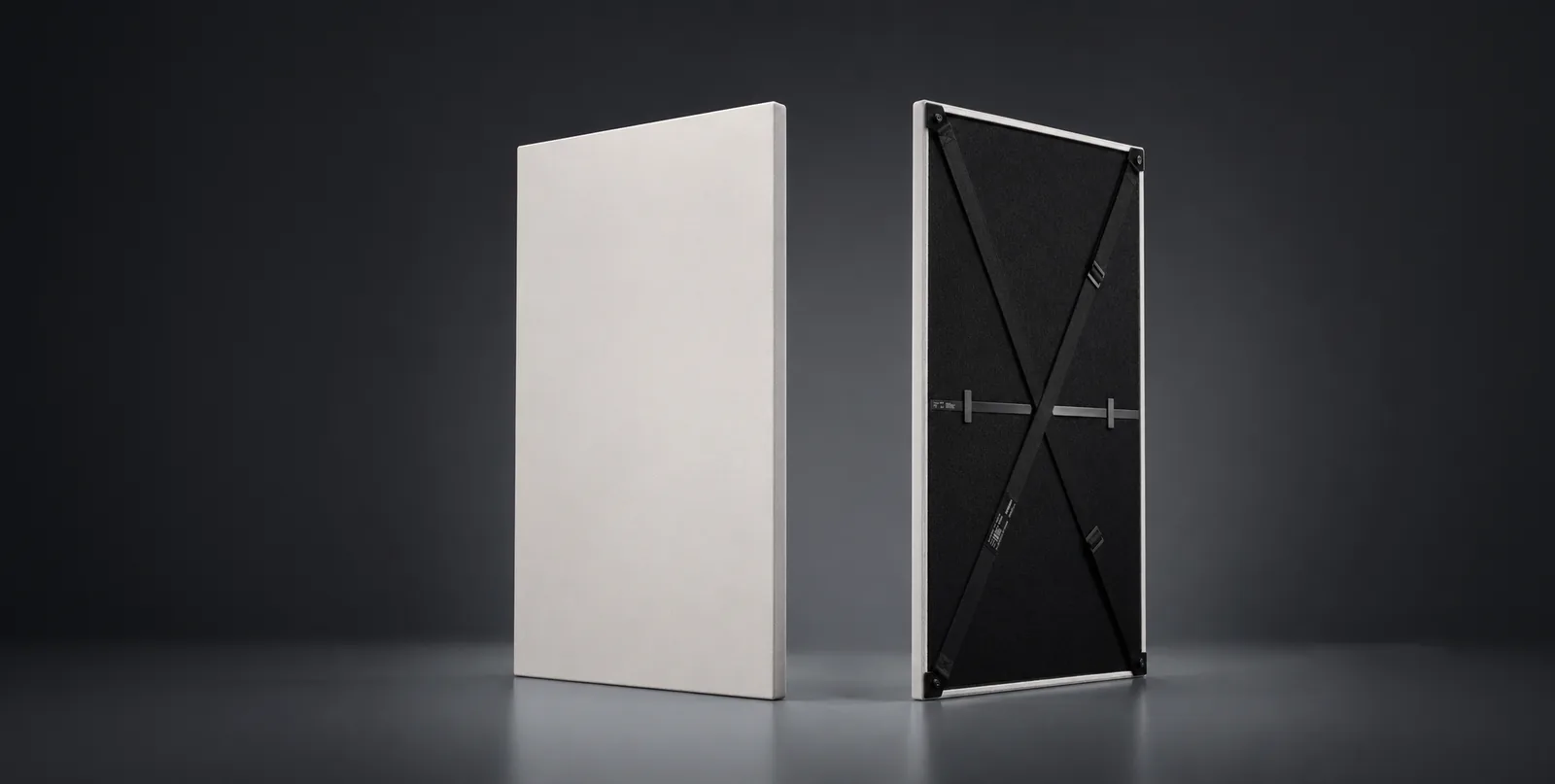

Air shown from the textile face and from the rear, with its black frame and cross-bracing visible

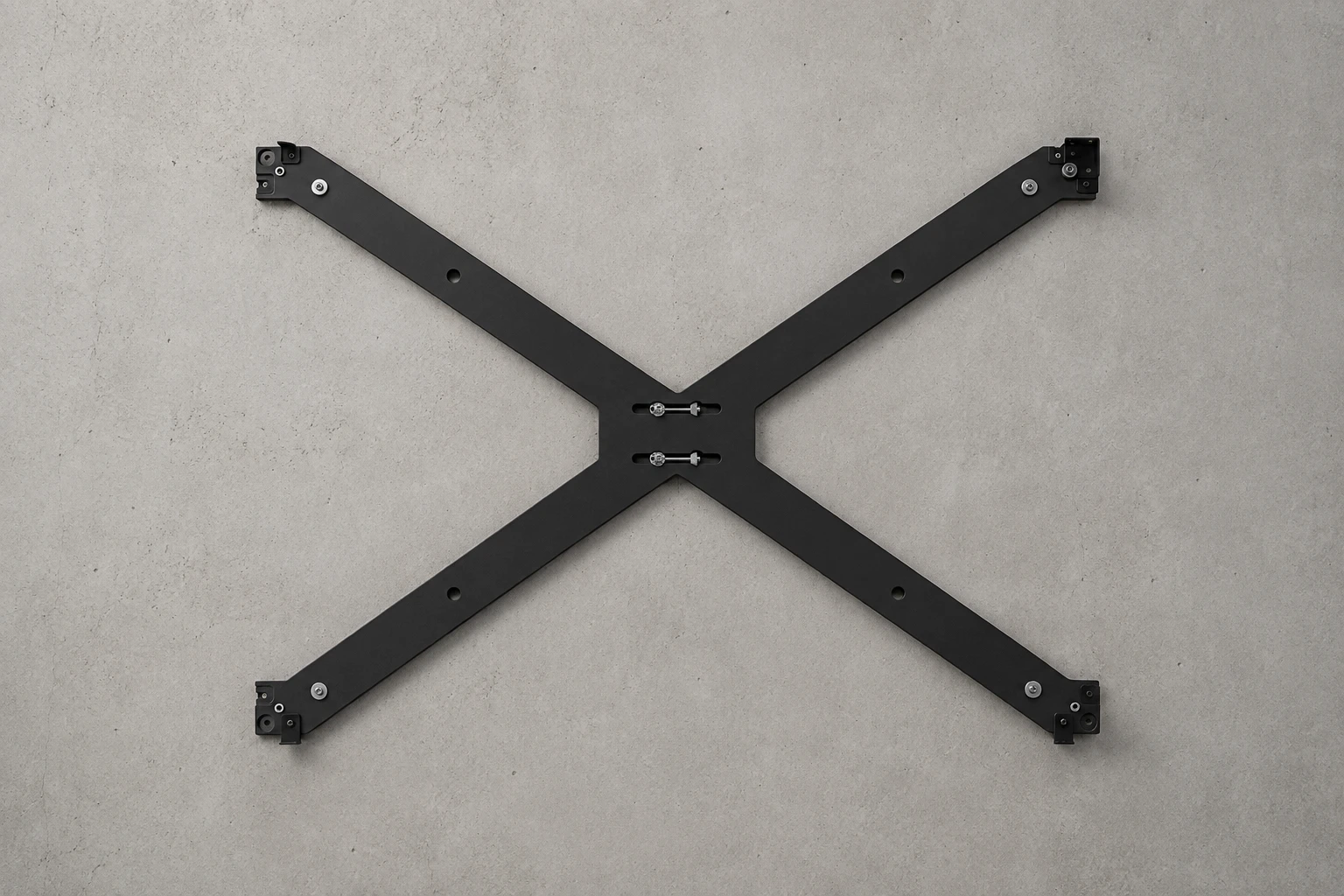

Shared mounting geometry

One mount
Every configuration

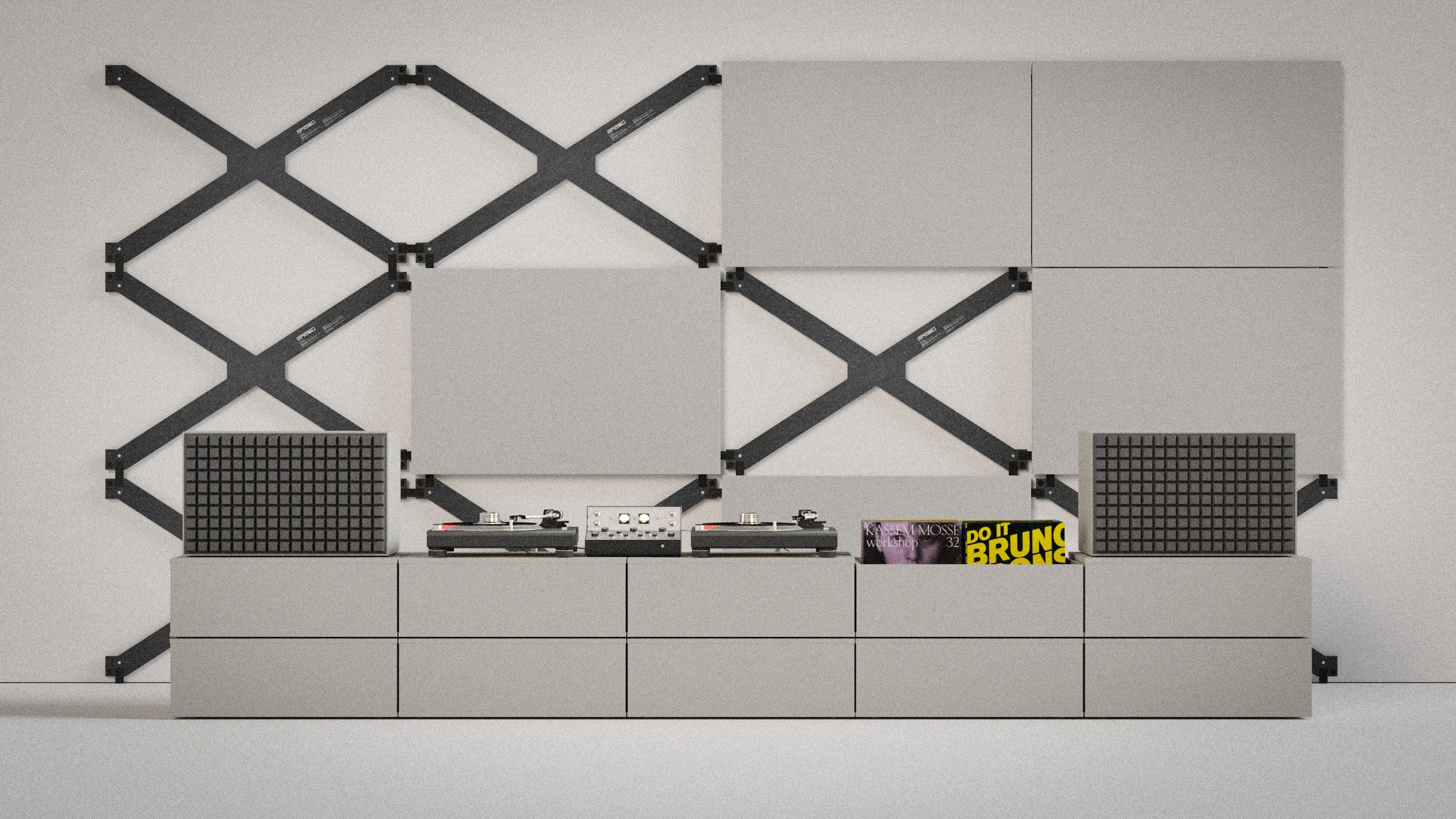

Connected mounts align panels in portrait or landscape layouts. The same mount supports Air, Studio 100 and Studio 200.

Discuss my project

Everything
in one bag

Panel, mount, template and tools. Ready to fit together.

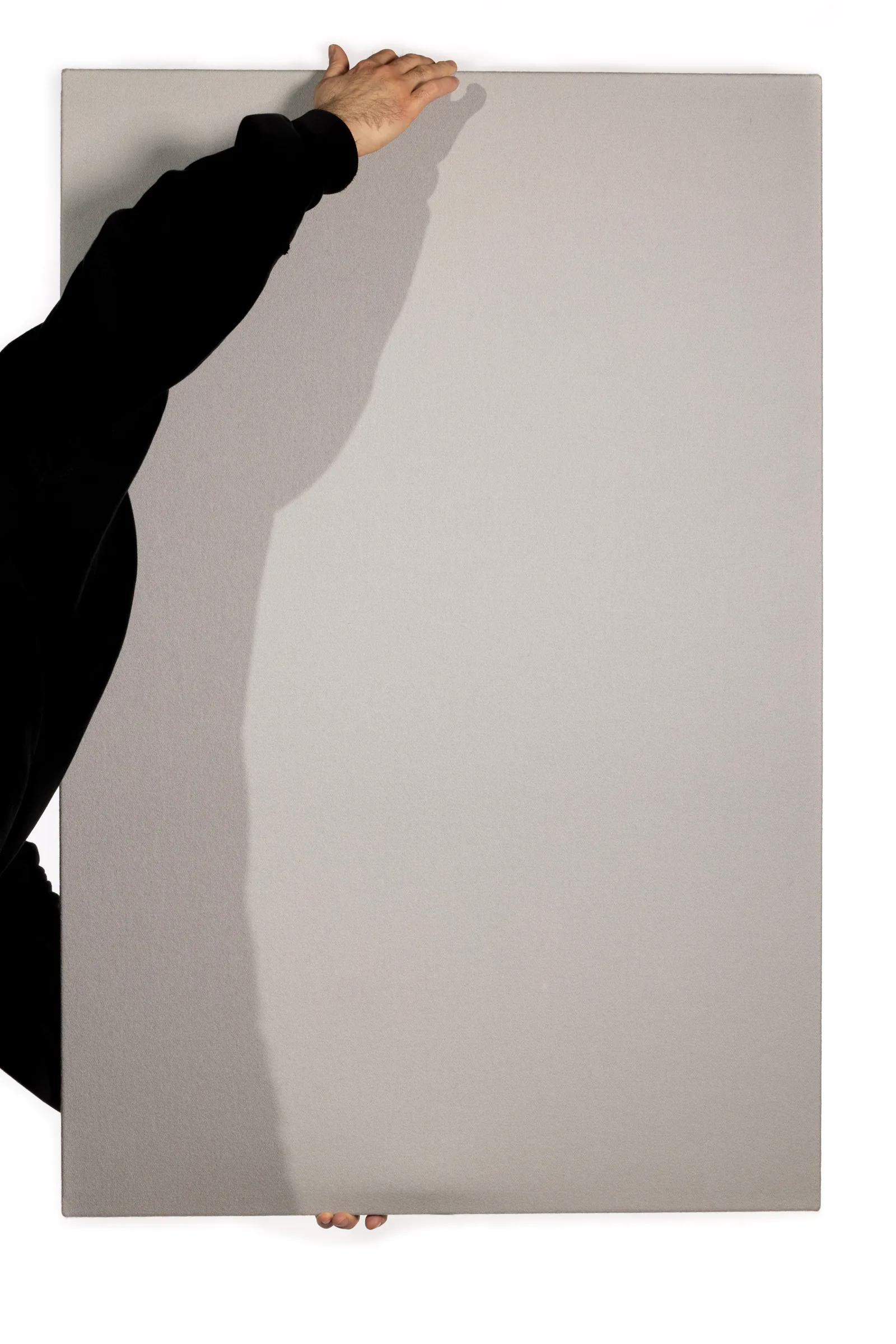

A person holding an Air panel, showing its full size and textile face
Air panelFinished in the selected material
Wall mount from the PX-System Air kit. The shared PX-System interface.
Wall mountThe shared PX-System interface

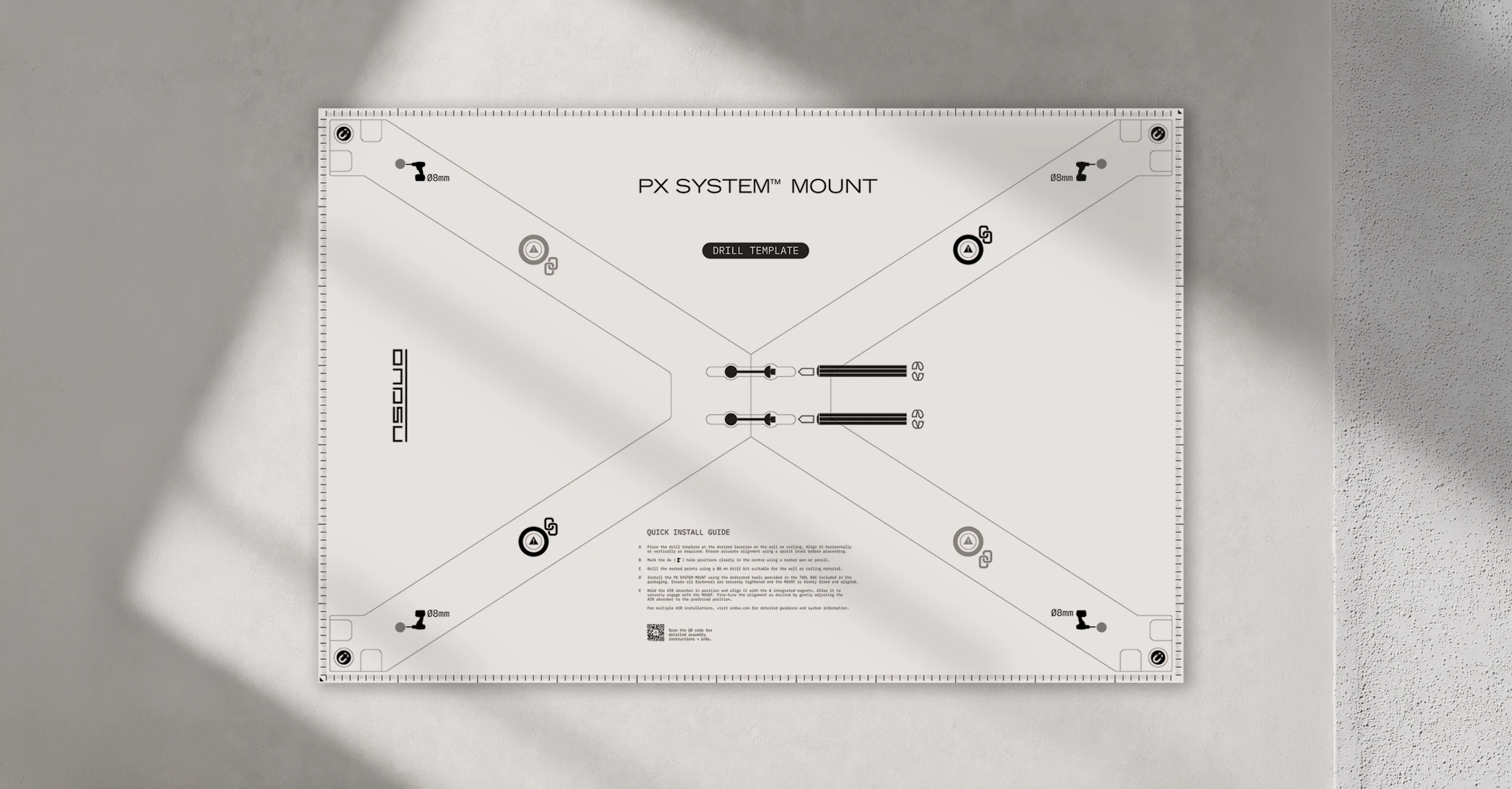

Drilling template from the PX-System Air kit. Printed at 1:1.
Drilling templatePrinted at 1:1

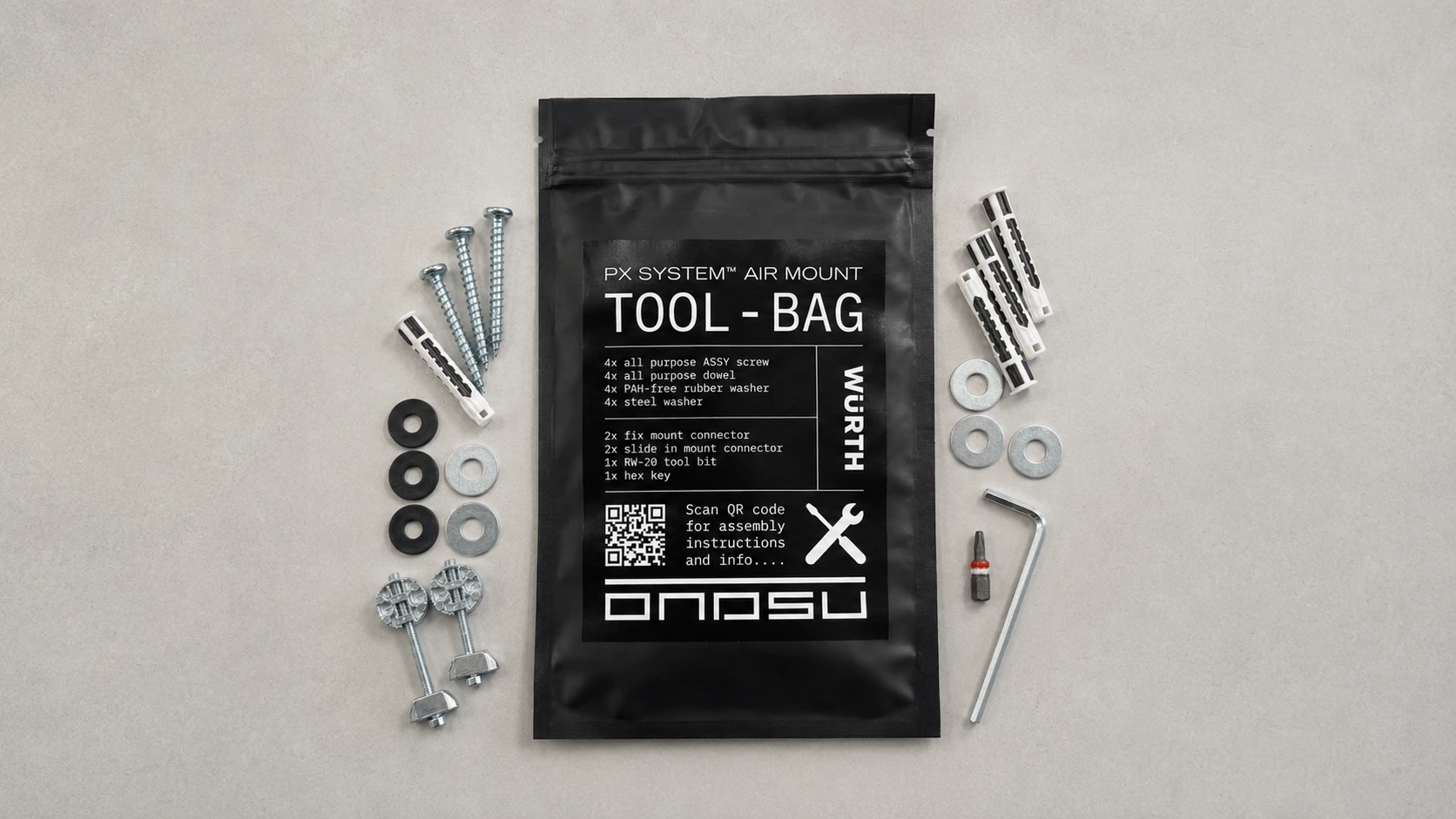

Fixings and tools from the PX-System Air kit. Fixings by Würth.
Fixings and toolsFixings by Würth

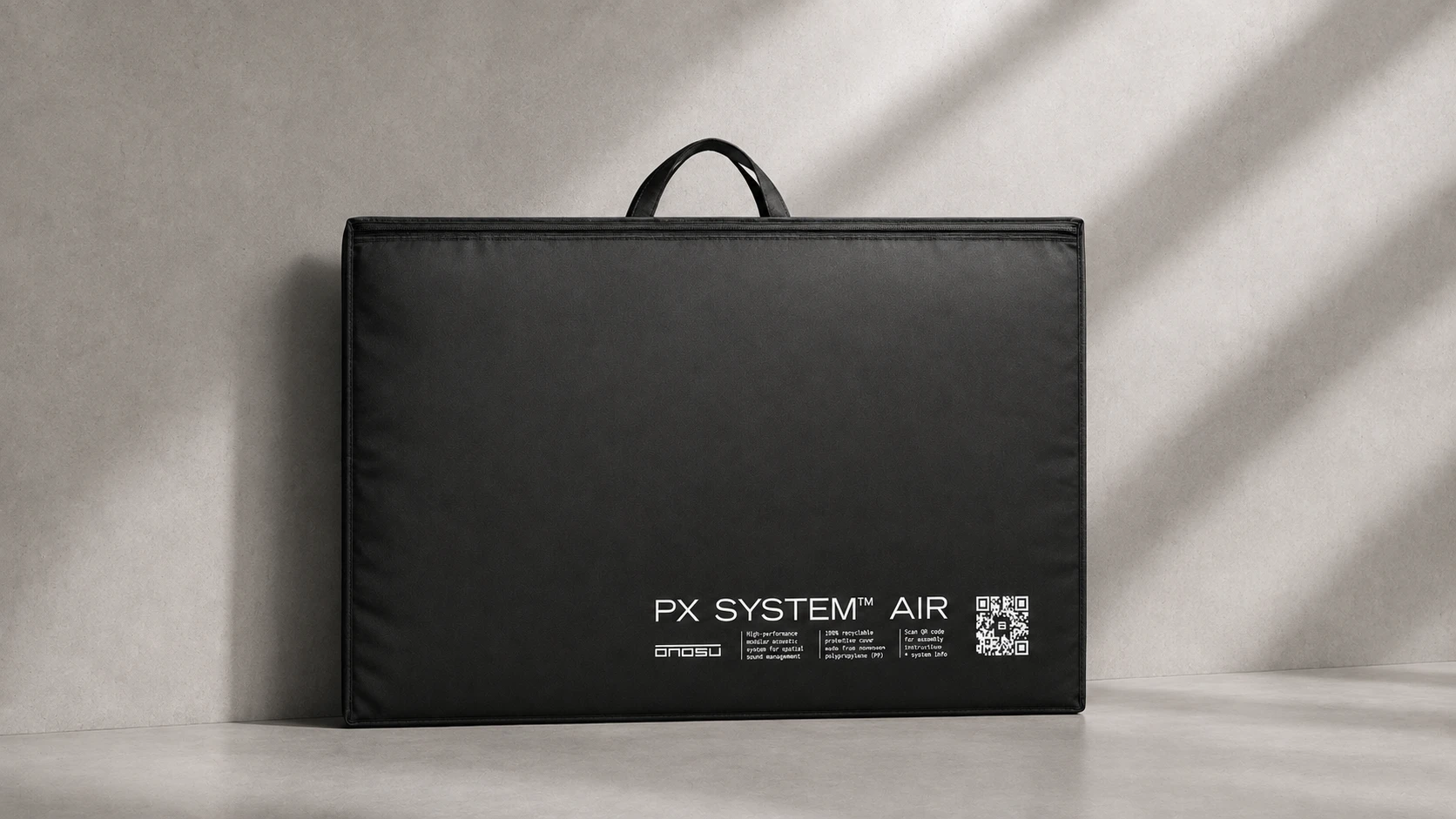

Carry bag from the PX-System Air kit. One bag for the kit.
Carry bagOne bag for the kit

Mount is included with Air. For wall or ceiling installation, Air attaches to Mount or to the front of Studio. Air cannot fix directly to the building surface.

Air is specified with your project. We confirm the textile, the configuration and the installation before anything is made.

Discuss my project

Air, in detail

Mid and high frequency absorption in a 22 mm panel.

Face
1 082 × 720 mm
Weight
3 kg
Panel construction
22 mm depth
With mount
40 mm construction depth
Frame
Extruded black anodised aluminium
Acoustic core
20 mm CARUSO ISO-BOND 035 polyester
Attachment
Concealed magnetic interface
Compatible depth modules
Studio 100 or Studio 200

Frame: A1 non-combustible. Core: DIN 4102-1 B1, DIN EN 13501-1 B-s1,d0, approval Z-23.1.3-278. Assembly fire classification follows the selected finish and is settled at specification. No mineral wool or foam.

Start with your room

Bring your plans and material palette. We’ll develop the finish, configuration and acoustic specification around your project.

Discuss my project

Not ready to talk? Get a free Acoustic Score first.
